Common Concealed Cistern Problems

Common Concealed Cistern Problems: Causes and How to Fix Them

A concealed cistern creates a clean, modern bathroom by hiding the toilet tank behind a wall or inside a supporting frame. However, like any toilet flushing system, it can develop problems over time.

You might notice that the toilet keeps running, the flush becomes weaker, the cistern takes too long to refill, or water starts leaking. The good news is that almost concealed cistern all problems are caused by internal components that can be inspected and repaired without removing the entire toilet or opening the wall.

In this guide, we explain the most common concealed cistern problems, their possible causes, and when to call a plumber.

1. The Toilet Keeps Running After Flushing

One of the most common concealed cistern problems is a toilet that continues running after the flush cycle has finished.

Possible causes:

  • A worn or damaged flush valve seal.
  • A flush valve that does not close properly.
  • A filling valve that fails to stop when the cistern is full.
  • Debris or limescale affecting the valve mechanism.

How to fix it:

First, observe whether the water continues running into the toilet bowl or whether the cistern keeps refilling intermittently. These symptoms can help identify the likely cause.

A plumber can inspect the flush valve, seals, and filling mechanism through the cistern’s service opening, which is often accessible behind the flush plate. Cleaning or replacing a faulty component may solve the problem.

If the toilet continues running, it is worth addressing promptly because unnecessary water consumption can add up over time.

Water leaking into the toilet bowl
The Toilet Keeps Running After Flushing; how to fixe it

2. The Cistern Takes Too Long to Refill

After flushing, the cistern should refill and be ready for the next use. If this process takes unusually long, the problem may lie with the water supply or filling mechanism.

Possible causes:

  • A partially closed water supply valve.
  • Low water pressure.
  • A blocked inlet filter.
  • Limescale or debris inside the filling valve.
  • A worn or faulty filling valve.

How to fix it:

Check whether other taps in the bathroom have normal water flow. If they do, the issue may be specific to the cistern.

A plumber can inspect the supply valve, inlet filter, and filling mechanism. Depending on the cause, cleaning the filter or replacing the filling valve may restore normal refill times.

Avoid adjusting concealed components without checking the manufacturer’s instructions, particularly if access is limited.

3. The Flush Is Weak or Does Not Clear the Bowl Properly

A weak flush can leave waste behind or require repeated flushing. Although the concealed cistern may be responsible, the problem is not always inside the tank.

Possible causes:

  • An incorrect flush-volume setting.
  • A flush valve that does not open fully.
  • Restricted water flow through the toilet’s flushing channels.
  • A partial blockage in the toilet trap or waste pipe.
  • A mismatch between the cistern and toilet specifications.

How to fix it:

First, check whether the problem happens with every flush. If the water level and refill cycle appear normal but the bowl still does not clear properly, the toilet or drainage system may need inspection.

A plumber can check the flush mechanism, the flush-volume settings, and the waste pipe for obstructions. Always follow the manufacturer’s specified settings rather than increasing the flush volume without checking compatibility.

If the problem began after a new toilet was installed, confirm that the toilet and concealed cistern are compatible.

Plumber inspecting concealed cistern components to diagnose a weak toilet flush
inspecting concealed cistern components to diagnose a weak toilet flush

4. Water Leaks Around the Toilet or Inside the Wall

Water around a wall-hung toilet or damp patches on a nearby wall should never be ignored.

A concealed cistern leak can be harder to identify than a leak from an exposed toilet tank because some components and connections are hidden behind the wall.

Possible causes:

  • A leaking water supply connection.
  • A damaged seal or flush pipe connection.
  • A faulty internal valve.
  • A leak from the toilet’s waste connection.
  • Condensation on cold surfaces, which can sometimes be mistaken for a leak.

How to fix it:

Look for recurring moisture, unexplained puddles, damp patches, or water marks around the toilet and nearby wall.

If you suspect an active leak, shut off the cistern’s water supply using the designated isolation valve if it is safely accessible, and arrange a professional inspection. Do not remove tiles or open the wall before the source of the leak has been identified.

Many concealed cisterns are designed to allow access to serviceable components through the flush plate opening. However, the exact repair method depends on the installation and the location of the leak.

Important: If water is reaching electrical fittings or spreading rapidly, avoid the affected area and seek urgent professional assistance.

5. The Flush Button Is Stiff, Stuck, or Does Not Work

The flush button is the part of a concealed cistern that users interact with every day. If it becomes difficult to press, sticks in place, or fails to activate the flush, the problem may be mechanical.

Possible causes:

  • Misaligned button rods or operating components.
  • A loose or incorrectly installed flush plate.
  • Dirt or limescale affecting moving parts.
  • A damaged pneumatic hose or actuator, depending on the system.
  • A problem with the flush valve itself.

How to fix it:

Check whether the flush plate appears loose or misaligned. Do not force a stuck button, as this may damage the operating mechanism.

A plumber can remove the flush plate according to the manufacturer’s instructions and inspect the actuator, rods, or pneumatic connections. Some faults can be corrected by adjusting or replacing a small component rather than replacing the complete cistern.

When choosing replacement parts, confirm that they are compatible with the cistern model.

6. The Cistern Makes Unusual Noises

A concealed cistern may produce some noise while filling after a flush. However, persistent whistling, banging, or unusually loud filling sounds can indicate a problem.

Possible causes:

  • A worn or faulty filling valve.
  • High or fluctuating water pressure.
  • Vibrations in the water supply pipework.
  • Air or movement in the plumbing system.
  • A valve that does not open or close smoothly.

How to fix it:

Try to identify when the sound occurs. Noise during refilling may point towards the filling valve or water supply, while a sudden banging sound can be associated with pressure changes in the pipework.

A plumber can inspect the filling mechanism, water pressure, and pipe connections. Replacing a worn valve or correcting a pipework issue may reduce the noise.

If the noise starts suddenly or becomes significantly louder, arrange an inspection rather than assuming it is normal.

7. The Cistern Does Not Stop Filling

If water continues entering the cistern after it should be full, the filling valve or its level-control mechanism may not be working correctly.

This is different from a toilet that continues running into the bowl after flushing, although the symptoms can sometimes occur together.

Possible causes:

  • A filling valve that is stuck or worn.
  • A float mechanism that cannot move freely.
  • Incorrect water-level adjustment.
  • Debris or limescale inside the valve.

How to fix it:

A plumber can inspect the filling valve and water-level control through the service opening. Cleaning, adjustment, or replacement may be sufficient.

If the cistern is overflowing into the toilet bowl, arrange a repair promptly to avoid wasting water.

Can You Repair a Concealed Cistern Without Opening the Wall?

In many cases, yes.

Concealed cisterns are generally designed with a service opening behind the flush plate. Depending on the model, this opening can provide access to the filling valve, flush valve, and other serviceable parts.

However, not every problem can be resolved through this opening. Damaged concealed pipework, inaccessible connections, or structural installation issues may require more extensive work.

Before attempting a repair, consult the manufacturer’s installation and maintenance instructions. If you cannot identify the fault or safely access the components, contact a qualified plumber.

How to Prevent Concealed Cistern Problems

Regular checks can help identify minor issues before they become more expensive to repair.

  • Address continuous running promptly. A small valve problem can waste water if left unresolved.
  • Use compatible replacement parts. Different cistern models may require different valves and operating components.
  • Avoid forcing the flush button. Resistance may indicate a mechanical problem.
  • Investigate recurring leaks. Do not assume that dampness will disappear on its own.
  • Follow the manufacturer’s maintenance instructions. Avoid aggressive chemicals or cleaning products that may damage internal components.
  • Use a qualified installer. Correct installation and compatible components are important for reliable performance.

A concealed cistern should also be selected to match the toilet and the installation requirements. For a new bathroom, confirm compatibility before purchasing the toilet, cistern, and supporting frame.

Frequently Asked Questions

What is the most common concealed cistern problem?

A toilet that keeps running after flushing is a common problem. It may be caused by a worn flush valve seal, a faulty filling valve, or a mechanism that does not close correctly.

Can a concealed cistern be repaired without removing the toilet?

Many internal cistern faults can be repaired through the service opening behind the flush plate. However, leaks from inaccessible pipework or certain installation problems may require more extensive access.

Why does my concealed cistern keep refilling?

The filling valve may not be closing correctly, the water level may be incorrectly adjusted, or the flush valve may be allowing water to escape into the bowl. A plumber can identify which component is responsible.

How do I know if my concealed cistern is leaking?

Possible signs include unexplained water around the toilet, persistent damp patches, water marks on the wall, or water continuing to enter the bowl when the toilet is not in use. The source should be checked before assuming the cistern itself is damaged.

When should I call a plumber?

Contact a plumber if the toilet continues running, the flush becomes unreliable, the button stops working, or you notice signs of a leak. Seek prompt assistance for active leaks or water damage.

Most concealed cistern problems do not automatically mean that the entire system needs replacing. Faulty valves, worn seals, blocked filters, and button mechanisms can often be repaired through the service opening.

The key is to identify the source of the problem before replacing parts or disturbing the wall. With compatible components, correct installation, and timely maintenance, a concealed cistern can provide reliable performance for years.

For a new bathroom or a cistern replacement, always check that the cistern, frame, and toilet are compatible and that the system can be serviced according to the manufacturer’s instructions.

Saniterra smart silent concealed cistern for wall mounted toilet

What Happens Inside a Concealed Cistern After You Press the Flush Button?

Every day, we press a flush button without giving it a second thought.

The water disappears, the toilet is cleaned, and within a few moments, everything is ready for the next use.

Simple, right?

Not quite.

Behind the wall, inside every concealed cistern, a carefully designed sequence of mechanical movements takes place in just a few seconds. These movements determine not only how well your toilet flushes, but also how much water is actually used, or wasted.

Surprisingly, not all concealed cisterns work the same way.

The First Second After You Flush

The moment you press the flush plate, the outlet valve opens.

Gravity takes over, allowing the stored water inside the cistern to rush into the toilet bowl with enough force to complete the flush.

At this point, every concealed cistern looks identical.

But this is exactly where the difference begins.

How a Conventional Concealed Cistern Works

In a conventional system, the inlet valve opens almost immediately after the flush starts.

While water is still leaving the cistern, fresh water has already started entering it.

From the outside, everything appears normal.

Inside the tank, however, two things are happening at the same time:

* Water is flowing out.
* Fresh water is flowing in.

This overlap might seem harmless, but it creates an inefficiency. Part of the incoming clean water contributes little to the flushing process because it enters before the cycle has finished.

It’s a small amount during each flush—but over weeks, months, and years, those small amounts accumulate.

Is There a Better Way?

Engineers asked a simple question:

Why refill the cistern before the flush has actually finished?

If the tank is still emptying, wouldn’t it make more sense to wait just a little longer before opening the inlet valve?

That simple idea led to a smarter flushing sequence.

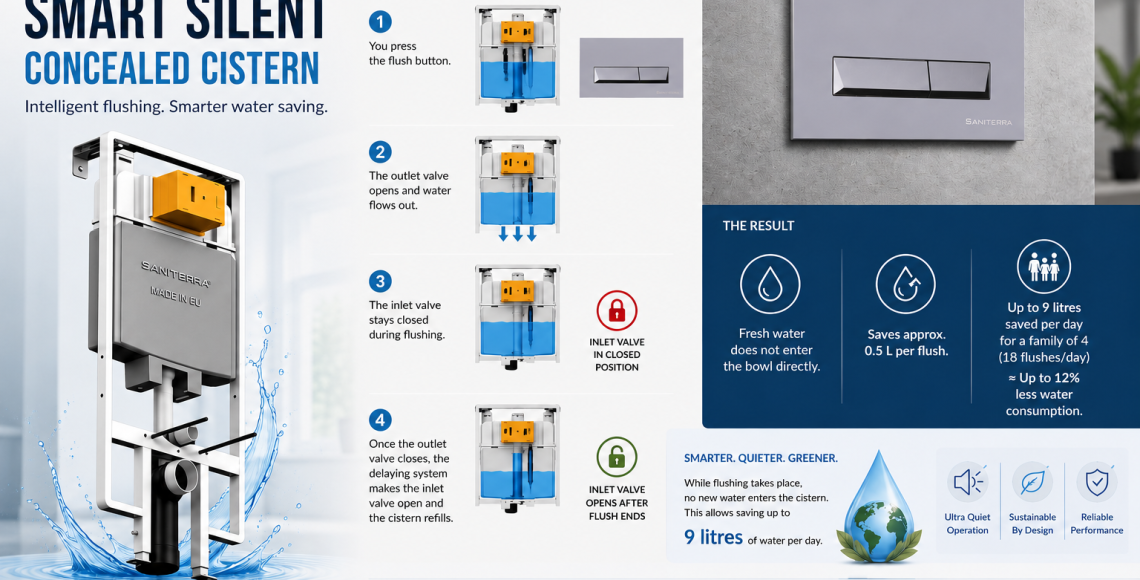

A Smarter Sequence

Instead of refilling immediately, the inlet valve remains closed throughout the flushing cycle.

The sequence becomes:

1. The flush button is pressed.
2. The outlet valve opens.
3. Water leaves the cistern.
4. The inlet valve stays closed.
5. The outlet valve closes.
6. Only then does the cistern begin to refill.

Nothing changes for the user.

The flush feels exactly the same.

But internally, the system works much more efficiently.

Why Timing Matters

The difference is only a few seconds.

Yet those few seconds prevent fresh water from entering while the flush is still in progress.

Instead of allowing clean water to mix with an active flush, the cistern completes one task before starting the next.

Think of it as waiting for one door to close before opening another.

It’s a small engineering improvement, but it makes the entire system more efficient.

How SANITERRA Smart Silent Technology Works

This is exactly the principle behind the SANITERRA Smart Silent Concealed Cistern.

Its delayed-refill technology keeps the inlet valve closed while the outlet valve is open.

Only after the flushing cycle has completely finished does the inlet valve open and quietly refill the cistern.

This intelligent sequence offers several advantages:

* No unnecessary water enters during flushing.
* Approximately 0.5 litres of water can be saved with every flush.
* A typical family can save up to 9 litres of water per day.
* Overall water consumption can be reduced by up to 12%.
* The refill process is smoother and quieter.

The best part?

The user doesn’t have to do anything differently.

The system works automatically, every single time.

Smart Engineering Isn’t Always Visible

When choosing a concealed cistern, most people compare flush plates, frame strength, installation depth, or dual-flush volumes. BUT …

Very few ask an equally important question too:

What happens inside the tank after I press the flush button?

The answer reveals a difference you can’t see, but one you’ll benefit from every day.

Sometimes, innovation isn’t about adding more features.

Sometimes, it’s simply about making the sequence smarter.

And in the case of a concealed cistern, a smarter sequence means quieter operation, less wasted water, and better performance with every flush.

Smart Silent Concealed Cistern WM Toilet

At Saniterra, we understand that modern bathrooms demand innovative solutions that blend seamlessly with contemporary aesthetics while offering unparalleled functionality. That’s why we’re thrilled to introduce a groundbreaking product designed to revolutionize your wall-mounted toilet installation: the Saniterra Smart Silent Concealed Cistern. This isn’t just another toilet frame; it’s a meticulously engineered system that promises superior stability, exceptional water efficiency, and a truly silent operation. Whether you’re undertaking a new bathroom build or a renovation project, our Smart Silent Cistern provides the ideal foundation for a sophisticated and long-lasting wall-mounted toilet. Join us as we delve into the features that make this product an indispensable asset for any modern bathroom design.

Unrivaled compatibility and installation versatility

One of the most significant advantages of the Saniterra Smart Silent Concealed Cistern is its remarkable compatibility. Designed to work seamlessly with all types of wall-mounted toilets, specifically those operating on a 6/3 liter flush system, it eliminates the guesswork and limitations often associated with selecting the right frame. This universal compatibility ensures that you have the freedom to choose your preferred wall-mounted WC pan without concerns about fitting. Furthermore, the installation flexibility is second to none. The frame can be securely fixed to the wall and to the floor, or effortlessly integrated into the technical support channel of light walls. This adaptability makes it suitable for a wide range of construction scenarios, from traditional brick walls to modern plasterboard partitions, ensuring a stable and robust foundation for your toilet.

Engineered for exceptional strength and silent operation

Durability and safety are paramount in bathroom design, and the Saniterra Smart Silent Cistern excels in both. Constructed with high-quality materials, this frame is engineered to support an impressive weight of up to 400 kg. This robust construction provides peace of mind, knowing that your wall-mounted toilet is securely anchored and built to last. Beyond its strength, the “Smart Silent” aspect of its name is truly indicative of its performance. The innovative design significantly reduces flushing noise, contributing to a tranquil bathroom environment. This is especially beneficial in smaller living spaces or master bathrooms where quiet operation is highly valued, enhancing the overall comfort and serenity of your personal oasis.

Optimized for water saving and adjustable design

In an era where sustainability is crucial, the Smart Silent Cistern makes a significant contribution to water conservation. Featuring a smart system, it is capable of saving up to 9 liters of water per day. This not only benefits the environment but also translates into noticeable reductions in your water bills over time. The thoughtful design also extends to its adjustability, ensuring a perfect fit and aesthetic for various bathroom layouts. The outlet bend, for instance, is depth adjustable, allowing for precise alignment with your plumbing. Additionally, the entire frame is height adjustable from 0 to 150 mm, providing flexibility to accommodate different toilet heights and design preferences. With a slim 90 mm thickness, it integrates discreetly into your wall, maximizing available bathroom space.

Effortless installation with included components

The Saniterra Smart Silent Cistern is designed for easy and quick installation, a crucial factor for both professionals and DIY enthusiasts. The package includes all the necessary components for a hassle-free setup, streamlining the entire process. This comprehensive inclusion means you won’t need to source additional parts, saving time and effort. Here’s a breakdown of what’s included:

  • WC pan fixing material
  • Frame fixing material
  • Inlet and outlet WC pan connection
  • Outlet bend and Ø90

This ensures that you have everything at hand to complete a professional and secure installation, whether it’s for a built-in or plasterboard wall setup. The ease of installation, combined with the frame’s inherent stability and adjustability, makes it a preferred choice for achieving a flawless wall-mounted toilet installation.

Saniterra Smart Silent Cistern (SKU: 71209050) – Key Features
Feature Specification
Compatibility All Wall Mounted toilets (6/3 liters)
Installation Type Wall, Floor, Light wall technical channel
Weight Support Up to 400 kg
Thickness 90 mm
Height Adjustment 0 to 150 mm
Water Saving 9 liters/day (smart system)
Included WC pan fixing, Frame fixing, Inlet/Outlet WC pan connection, Outlet bend and Ø90
Smart Silent Concealed cistern

In conclusion, the Saniterra Smart Silent Concealed Cistern stands as a testament to Saniterra’s commitment to innovation, quality, and user-centric design. We’ve explored its universal compatibility, robust strength, and remarkable water-saving capabilities, all of which contribute to an exceptional bathroom experience. The ease of installation, coupled with its flexible adjustability, ensures that this product seamlessly integrates into any modern bathroom, providing a solid and discreet foundation for your wall-mounted toilet. By choosing the Smart Silent Concealed Cistern, you’re not just investing in a toilet frame; you’re investing in a durable, efficient, and aesthetically pleasing solution that will elevate the functionality and comfort of your bathroom for years to come. Experience the Saniterra difference and transform your bathroom into a space of modern elegance and efficiency.

Saniterra Technical Team

Saniterra Expert concealed cistern

Expert Concealed Cistern

In the realm of contemporary bathroom design, where aesthetics meet unparalleled functionality, the choice of every component plays a crucial role. A truly modern bathroom prioritizes not only visual appeal but also intelligent space utilization and uncompromising reliability. This often leads to the increasing popularity of wall-hung WC pans, which offer a sleek, minimalist look and facilitate easier cleaning. However, the unsung hero behind these elegant fixtures is often the concealed cistern – a marvel of engineering that integrates seamlessly into your wall. Today, we delve into the world of the Expert Concealed Cistern, exploring its innovative features that promise to elevate your bathroom experience and provide a robust foundation for any design vision.

Universal compatibility for diverse designs

One of the standout features of the Saniterra Expert Smart Silent Cistern is its remarkable versatility, boasting compatibility with all wall-hung WC pans. This attribute is a game-changer for architects, interior designers, and homeowners alike, offering unparalleled freedom in selecting the perfect toilet pan to match any bathroom aesthetic. Whether your vision leans towards classic minimalism, bold contemporary lines, or a more unique design, this cistern acts as a universal foundation. This ensures that you are not limited by the cistern’s specifications when choosing your preferred WC pan, allowing for creative expression and future upgrades without the need for a complete system overhaul. It’s a strategic investment that adapts to evolving tastes and trends, guaranteeing that your bathroom remains both stylish and functional for years to come.

71208040-Expert concealed cistern
Feature Detail Benefit
Compatibility All wall-hung WC pans Freedom in design choice, future-proof your bathroom
Installation Versatility Built-in or plasterboard wall Adaptable to various construction types (drywall, masonry)
Load Capacity Frame tested for 400kg Superior strength, safety, and long-term durability
Height Adjustability From 0 to 200mm Enables precise positioning for ergonomic comfort and design needs
Outlet Depth Adjustability Depth adjustable outlet bend Ensures perfect alignment with various WC pan designs and wall depths

Robust installation for lasting peace of mind

The foundation of any reliable bathroom fixture lies in its installation and structural integrity. The Saniterra Expert Concealed Cistern excels in this aspect, engineered for both built-in or plasterboard wall installation. This flexibility means it can be seamlessly integrated into various construction types, from solid masonry walls to modern dry-lined partitions, making it suitable for almost any renovation or new build project. Beyond its adaptable installation, the frame itself has been rigorously tested for a 400kg load. This exceptional load-bearing capacity is a testament to its robust construction, providing unparalleled safety and stability for all users. It offers complete peace of mind, knowing that the wall-hung WC pan is securely supported, preventing any concerns about movement or structural failure over time. This high-performance frame ensures a durable and long-lasting installation, truly built to withstand the demands of daily use.

Streamlined setup: effortless for professionals and DIY enthusiasts

Efficiency in installation is a critical factor, not just for professional plumbers but also for any homeowner considering a DIY project. The Saniterra Expert Cistern is designed for easy and quick installation, a feature that significantly reduces labor time and complexity. This user-friendly design is achieved through thoughtful engineering and the inclusion of all necessary components, simplifying the entire process from start to finish. The package comes complete with essential items such as:

  • WC pan fixing material
  • Frame fixing material
  • Inlet and outlet WC pan connection
  • Outlet bend and Ø90
  • G ½’’ stop valve

Having all required fixing materials and connections readily available eliminates the need for separate purchases and ensures compatibility, contributing to a smooth and uninterrupted installation. This comprehensive approach means less time spent on site, lower installation costs, and a quicker path to a fully functional and aesthetically pleasing bathroom.

Precision adjustment for tailored comfort and design

Customization and adaptability are key to achieving a truly personalized bathroom space, and the Saniterra Expert Cistern delivers with impressive adjustability. It features a unique mechanism that allows its height to be adjusted from 0 to 200mm. This extensive range provides the flexibility to precisely position the wall-hung WC pan at an ideal height, catering to individual preferences, ergonomic comfort, and specific design requirements. Whether you need a lower pan for accessibility or a higher one for a contemporary look, this cistern can accommodate. Furthermore, the depth adjustable outlet bend adds another layer of versatility, allowing for perfect alignment with various WC pan designs and different wall thicknesses. This meticulous attention to adjustability also facilitates lower/under bench installation, offering creative solutions for compact bathrooms or unique design layouts where space optimization is paramount. These precision adjustments ensure not just functionality, but also a seamless visual integration into any bathroom setting.

In conclusion, the Expert Concealed Cistern stands as a beacon of innovation in modern bathroom infrastructure. Its thoughtful design, characterized by universal compatibility, robust construction tested for extreme loads, and a truly effortless installation process, makes it an indispensable component for any contemporary space. The added flexibility of extensive height and depth adjustability ensures that both aesthetic visions and ergonomic requirements are met with precision. This product is more than just a functional necessity; it’s a foundational element that contributes to the longevity, safety, and refined elegance of your bathroom. Choosing the Saniterra Expert Cistern means investing in a solution that combines cutting-edge engineering with user-centric design, providing a seamless and sophisticated backdrop for any wall-hung WC pan. It truly empowers you to create a bathroom that is both beautiful and built to last.

Saniterra Technical Team
